Leveraging 4D Modelling to Enhance On-Site Health and Safety
Majenta partnered with WGM Engineering to provide 4D modelling services for an extensive refurbishment and renovation project, at Scottish Water's Inchinnan Pumping Station. The project involves work on two underground dry wells and wet wells. These older assets presented challenges due to limited and outdated documentation.
fewer on-site modifications required
faster stakeholder decision-making
improvement in health and safety compliance
reduction in on-site survey time
Project background
The station, featuring a basement pump arrangement beneath an outbuilding, requires extensive restoration due to restricted access and resulting neglect. Complicating factors include a dilapidated building, a non-compliant stairway to the basement, and recurring pump failures causing flooded dry wells and leaking pipework. An outdated Motor Control Center and hazardous working-at-height risks during pump maintenance further complicate the project.
Creating the 4D model
Majenta utilised WGM’s point cloud survey, which provided accurate site measurements to build a detailed 4D model of the site, both above and below ground — eliminating the need for time-consuming and potentially inaccurate manual measurements, which also require significant time on site and confined space access. This proved particularly helpful at Inchinnan, where reliable and recently updated plans were unavailable.
Benefits of the 4D model

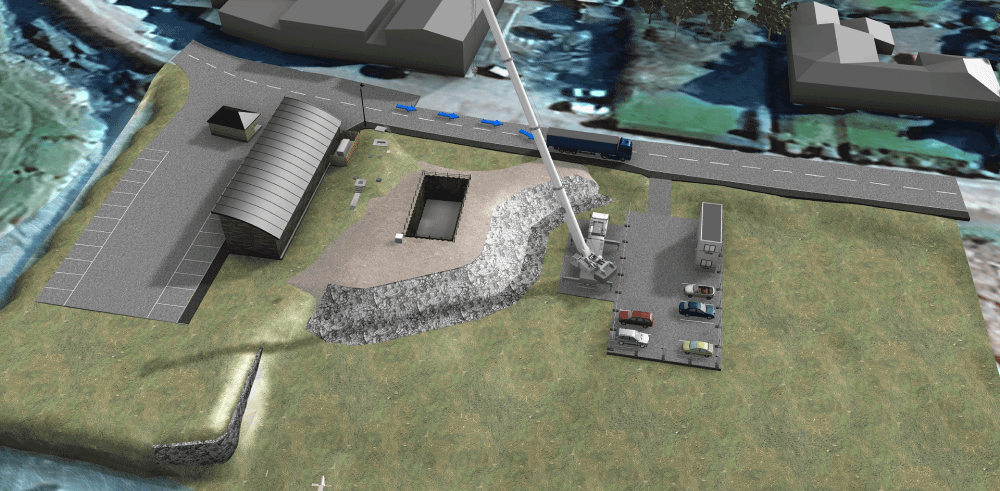

The completed 4D model offers a highly detailed view of the interior and exterior aspects of the project site, with real-time visualisation of planned changes over the project lifespan. This allows stakeholders to simulate, evaluate and plan key elements of the construction process, including logistics, plant movement, access and egress, health and safety, and material storage.
Enhancing health and safety
Majenta's 4D solution enhances health and safety provision by enabling better planning for site access, cabin placement, and vehicle parking. The below-ground visualisation has proved particularly helpful at Inchinnan for planning work in confined spaces and assessing risk.
Visualisation and client engagement
The clear and engaging above and below-ground project visualisations help improve client understanding and buy-in. This is particularly helpful for complex projects, as at Inchinnan — making client design reviews more efficient and engaging than is possible with 2D drawings or plans.
Project planning and tracking
The 4D solution's timeline feature offers a comprehensive visual overview of the project schedule — facilitating better coordination between teams and allowing them to anticipate potential conflicts, optimise resource allocation, and ultimately stay on track throughout the project lifecycle.
Optioneering and adaptability
The software facilitates rapid optioneering, allowing project teams to explore different scenarios and make informed decisions before construction. It can also be adapted to incorporate and evaluate any necessary changes arising during the construction phase.
Impact
With the project still in the pre-construction phase, substantial resource and cost savings have already been realised. Further savings are expected as WGM continues to leverage the 4D model for rehearsal and continuous analysis as work begins.
